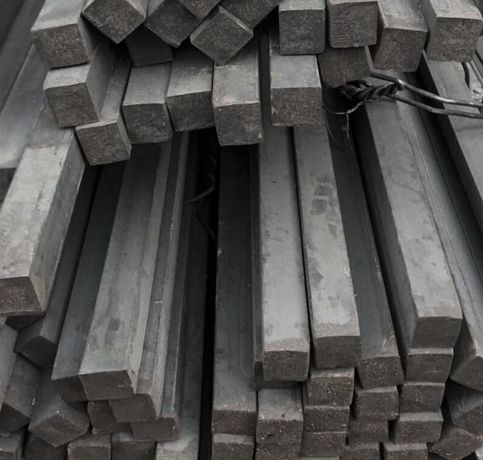

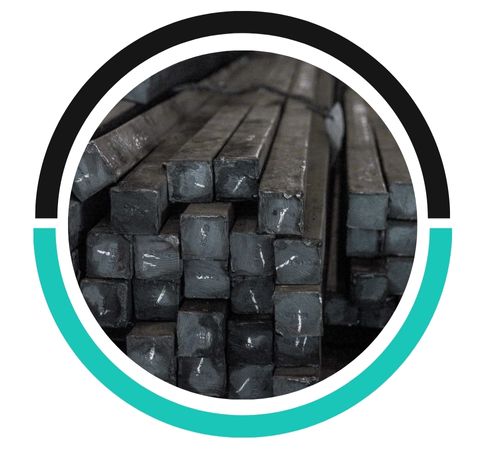

Dhruv Metals, a well-known manufacturer and supplier located in Hyderabad, India, focuses on delivering top-notch Alloy Steel Square Bars to a variety of industrial sectors. With a strong dedication to precision, durability, and excellence, Dhruv Metals guarantees that each square bar adheres to strict national and international standards. These bars are crafted using cutting-edge processes and high-quality raw materials, ensuring they perform optimally even in tough conditions. Offering a diverse range of sizes and grades, Alloy Steel Square Bars from Dhruv Metals are highly regarded in the automotive, construction, engineering, and heavy machinery industries for their exceptional strength and reliability.
Alloy Steel Square Bars are made up of essential alloying elements like carbon, chromium, molybdenum, manganese, and nickel. This unique blend enhances their mechanical properties, providing a tensile strength of 600–850 MPa and a yield strength ranging from 350–650 MPa, along with impressive ductility and impact resistance. These bars are celebrated for their outstanding hardness, wear resistance, and capability to endure high-stress environments. The well-balanced alloy composition ensures good machinability, corrosion resistance, and structural integrity, making Alloy Steel Square Bars perfect for precision engineering and high-load applications.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Alloy steel square bars are manufactured through processes like hot rolling, cold drawing, or forging. The steel is heated, shaped into square forms, and then cooled and finished to desired specifications.
Yes, alloy steel square bars are customizable in terms of size, length, and grade. They can be tailored to specific applications based on customer requirements and industry standards.
Thanks to their strength, versatility, and durability, Alloy Steel Square Bars find applications across a wide array of industries. In the automotive field, they are utilized to create axles, shafts, and fasteners. In construction, these bars act as structural supports and components for robust frameworks. The oil & gas, power generation, and petrochemical sectors rely on these bars for applications where high strength and corrosion resistance are vital. Moreover, their uniform shape and ease of machining make them ideal for fabrication, tooling, and general engineering tasks, ensuring they deliver long-lasting performance even under extreme operational conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
