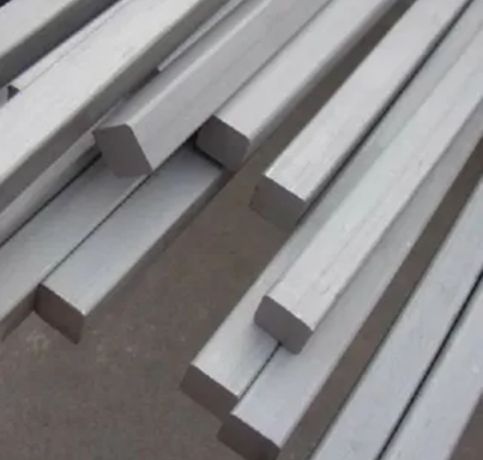

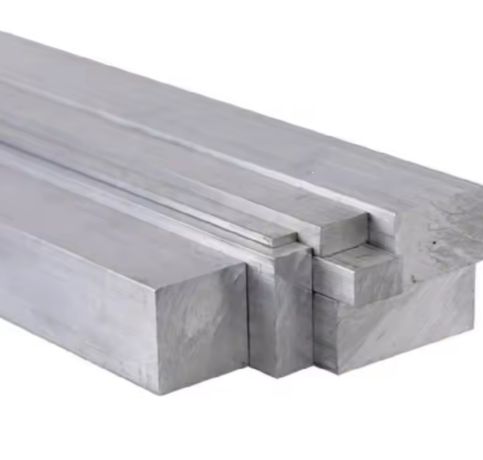

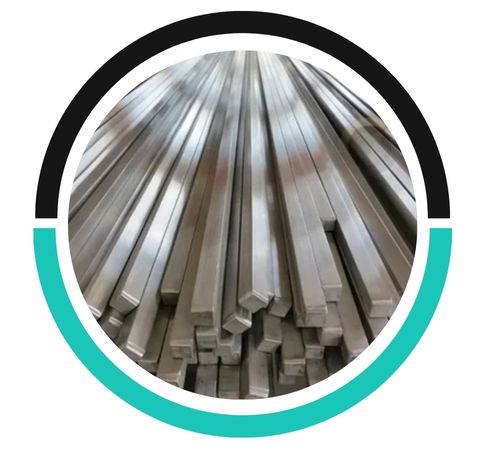

Dhruv Metals produces and provides high–quality Aluminium Square Bars and Rods in Hyderabad, providing strength, resistance to corrosion, and machinability in an adaptable geometric shape. These bars are available in alloys like 6061, 5052, and 7075 and meet the requirements of ASTM B221 and are supplied in custom widths, lengths, and tempers. Square bars are suitable for structural, architectural, and fabrication applications where there’s a need for a consistent surface finish and strict tolerance. At Dhruv Metals, there’s a consistent supply of square rods that are dimensionally precise, lightweight, and ideal for welding, anodizing, and forming.
6061 alloy has about 1.0% Mg and 0.6% Si, with ~270 MPa and tensile ~310 MPa with an elongation of about 12–17%. 5052 provides fair strength with high corrosion resistance, while 7075 provides tensile strength ~570 MPa and yield ~500 MPa. The alloys are weldable and heat-treatable. Bars are normally cold- or hot-finished with burr-free edges, flat uniformity, and close dimensional tolerances for compatibility with precision equipment and fabrication specifications.
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Yes, aluminum square bars are corrosion-resistant due to the formation of a protective oxide layer on the surface. This layer helps prevent further corrosion in most environmental conditions.
Aluminum square bars perform well in moderate heat but lose strength at high temperatures, typically above 200°C (392°F). They are not ideal for extreme high-temperature environments due to softening and deformation.
Yes, aluminum square rods can be customized in size and length based on specific requirements. Manufacturers offer a range of dimensions and can tailor the rods to meet individual project needs.
Aluminium Square Bars and Rods find extensive application in frameworks, support columns, platforms, and fastener blocks. In engineering, they are applied in the construction of fixture plates, jigs, and bearing bases. In architectural designs, square bars are utilized as window frames, brackets, and sign supports. Due to their lightweight and corrosion-proof characteristics, they are also applicable in marine use, furniture frames, and industrial racking systems. Dhruv Metals provides high-quality, square-profile aluminum stock for diverse industries emphasizing strength-to-weight efficiency and aesthetic performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
