Dhruv Metals, located in Hyderabad, India, has earned a solid reputation as a reliable manufacturer and supplier of Nitronic 60 Bars and Rods. They’re well-known for providing high-performance materials that are specifically designed to tackle the challenges of wear and galling resistance. With a strong emphasis on quality, innovation, and keeping customers happy, Dhruv Metals offers Nitronic 60 products that can withstand tough and abrasive conditions. Their state-of-the-art production capabilities and rigorous quality controls guarantee precise dimensions, consistent mechanical properties, and impressive corrosion resistance. Catering to various industries like petrochemical, food processing, automotive, and marine, Dhruv Metals delivers customized Nitronic 60 Bars and Rods that meet both Indian and international standards.
Nitronic 60 Bars and Rods are primarily made of iron, enriched with notable amounts of chromium (16–18%), nickel (8–9%), manganese (7–9%), and silicon (3.5–4.5%), along with nitrogen and trace amounts of molybdenum. This distinctive blend gives them remarkable resistance to galling, wear, and corrosion. On the mechanical side, Nitronic 60 boasts a tensile strength of about 690 MPa and a yield strength of roughly 380 MPa, along with good elongation and impact toughness. These characteristics make it a fantastic option for components that face friction and mechanical stress in corrosive settings.
| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

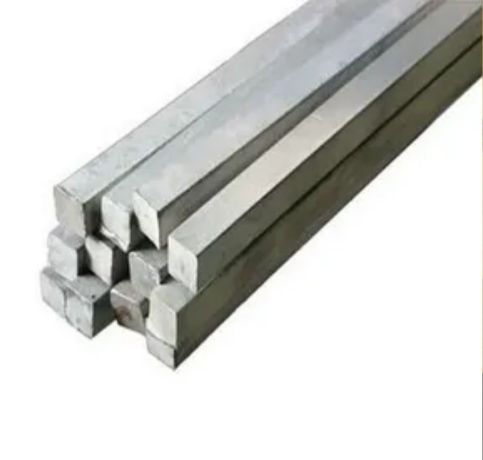

| Nitronic 60 Square bar size | 4 to 100mm |
| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

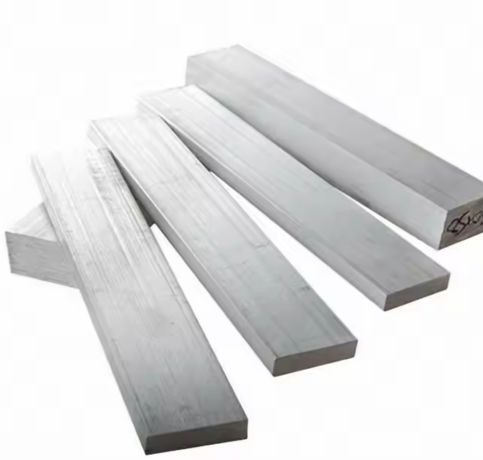

| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
Nitronic 60 Bars and Rods are extensively utilized in situations that demand exceptional wear and galling resistance, whether in dry or lubricated environments. In the petrochemical and oil & gas sectors, they’re commonly found in valve stems, pump components, and fasteners that come into contact with aggressive fluids. The food processing industry benefits from their non-galling properties, making them ideal for conveyor systems and processing equipment. In the automotive and transportation fields, they’re perfect for bushings, pins, and shafts that experience friction and vibration. Additionally, Nitronic 60 is used in marine hardware, aerospace components, and power generation equipment, where durability, corrosion resistance, and a long service life are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
