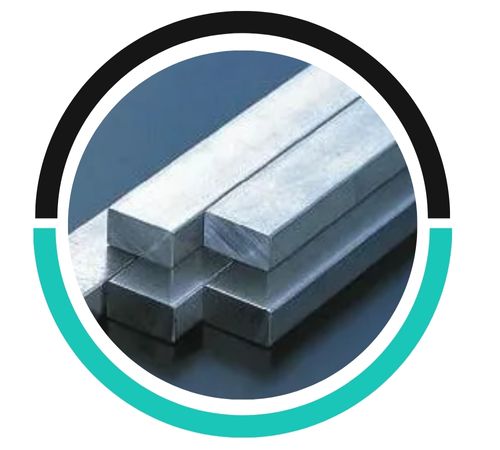

Stainless Steel 310S Square Bars and Rods, designed for high-temperature and corrosive applications, are renownedly manufactured and supplied by Dhruv Metals, a company based in Hyderabad, India. These bars and rods are made in accordance with international standards and are well-known for their exceptional strength and resistance to oxidation. They are used in vital industries such as thermal processing, petrochemicals, power, and marine. Every product from Dhruv Metals is guaranteed to deliver consistent performance and a long service life thanks to its excellent surface finish and precise dimensional accuracy. They are a reliable partner for stainless steel bar and rod solutions because of their dedication to quality, personalisation, and prompt delivery.
Stainless Steel 310S is an austenitic steel with high chromium and nickel content, providing excellent resistance to oxidation and corrosion at high temperatures. The composition includes about 25% chromium, 20% nickel, and small amounts of carbon, manganese, and silicon. Its mechanical properties include tensile strength around 515-725 MPa, yield strength of 205 MPa, and elongation of 40%. Stainless Steel 310S Square Bars and Rods have superior resistance to scaling and heat, high-temperature strength, good weldability, and excellent oxidation resistance. They are used for applications in furnaces, kilns, and heat exchangers under very harsh conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310S | 0.08 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310 | 8 | 1400 ℃ | 515 MPa | 205 | 40 – 50 | 160 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 310S | 1.4845 | S31008 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Square bars and rods of stainless steel 310S are frequently utilised in industrial settings with high temperatures where resistance to oxidation and heat is essential. They are used in furnace parts, heat exchangers, and flue components in the petrochemical and refinery industries. They are used in power plants for boiler parts, burners, and superheater tubes. For hygienic, corrosion-resistant processing equipment, the food and pharmaceutical industries favour 310S. They act as exposed metalwork and structural supports in high-heat or coastal environments in architecture and construction. They are perfect for long-lasting performance under harsh service conditions because of their exceptional strength, formability, and resistance to scaling.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
