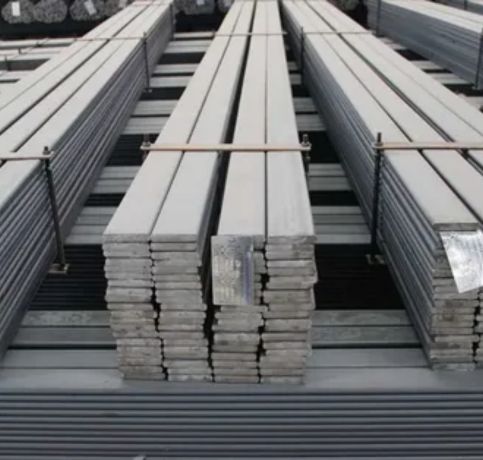

Dhruv Metals is a leading exporter of 316L stainless steel Flat plates, known for our commitment to high quality products and exceptional service. Our 316L stainless steel flats are made from high quality stainless steel, giving them exceptional corrosion resistance and durability. These flat panels are specifically designed for use in areas where function and appearance are important. Made from premium materials, our 316L flat pads find applications in industries such as chemical processing, marine applications and food processing. The low carbon content of these tiles increases their corrosion resistance, especially in high chloride environments. This makes it ideal for use in products containing strong chemicals or salt solutions. Also, flat panels have a smooth and uniform surface, making them perfect for architectural applications where aesthetics are important.
Stainless steel 316L flat Bar are made primarily of alloy made of 16-18% chromium, 10-14% nickel, 2-3% molybdenum, with low carbon content (0.03% max) to increase corrosion resistance Thus this composition is ideal for pitting , cracking and corrosion especially in chloride areas It provides resistance. Technically, 316L provides high tensile strength (up to 70,000 psi), yield strength (30,000 psi), and excellent toughness at high and low temperatures The material retains excellent formability and weldability, making it ideal for harsh industrial applications in corrosive environments.
Standard : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Flat Bar Size : 2mm ~ 100mm
Thickness : 1/8″ – 3″
Width : 3/8” – 8”
finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316L flat bars primarily consist of 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, with a maximum carbon content of 0.03%. This composition enhances corrosion resistance, especially in chloride-rich environments, making it ideal for demanding applications.
Stainless Steel 316L flat bars are commonly used in industries such as chemical processing, marine, food processing, pharmaceuticals, and petrochemicals. Their high corrosion resistance makes them ideal for applications exposed to aggressive chemicals, saltwater, and high-temperature environments.
The low carbon content in 316L stainless steel reduces carbide precipitation during welding, improving its resistance to intergranular corrosion. This enhances its overall corrosion resistance, particularly in chloride environments, and makes it suitable for applications requiring high strength and durability.
Thin 316L stainless steel Flat Bars is widely used in applications requiring high corrosion resistance, especially in high chloride environments. Some of the common applications include chemical processing, marine and food processing, where they are used for products that use harsh chemicals, salt water and high temperatures They are ideal for components such as valves, pumps, heat exchangers and piping systems. 316L flat panels are also used in the construction industry because of their smooth, uniform, and aesthetic properties for aesthetic and architectural applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
