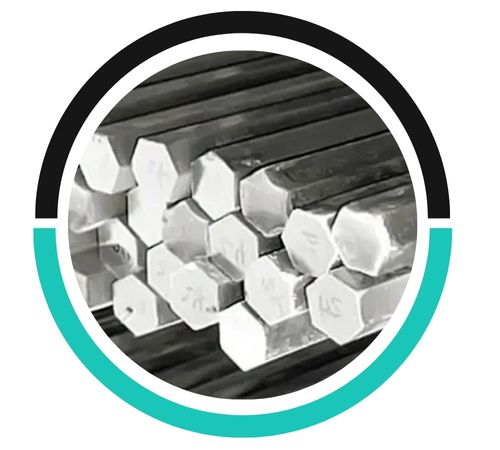

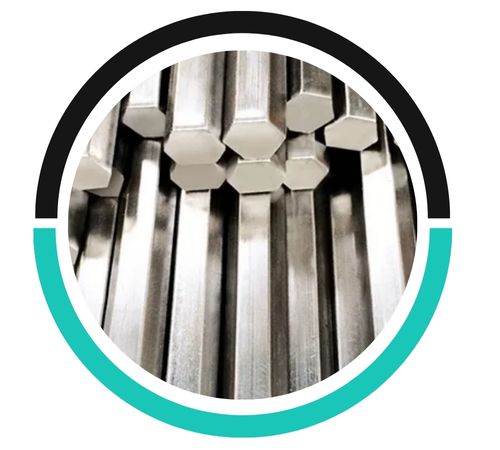

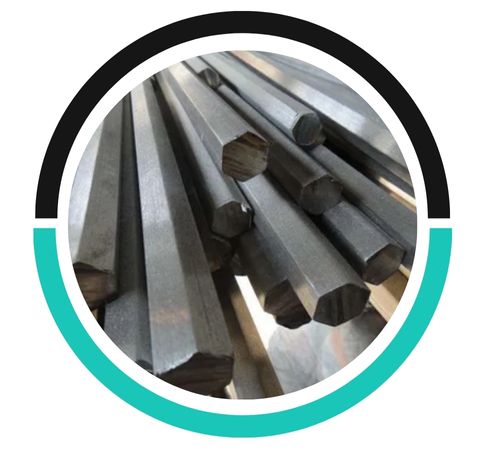

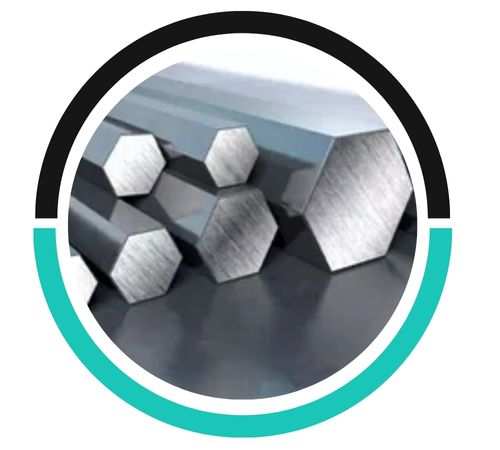

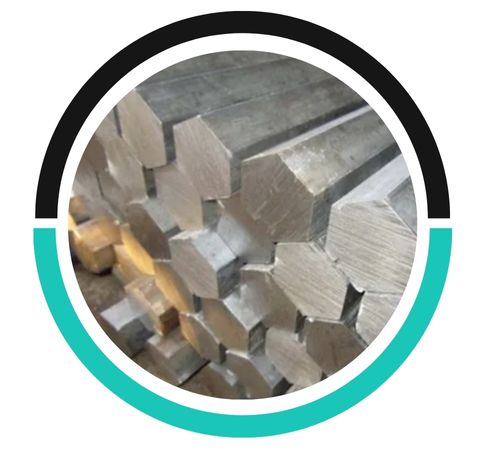

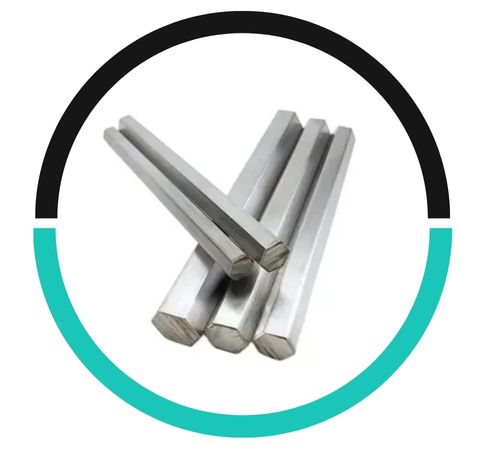

Dhruv Metals, a well-respected manufacturer and supplier located in Hyderabad, India, specializes in high-quality Stainless Steel 316 Hex Bars and Rods. These products are designed to provide outstanding corrosion resistance and mechanical strength, making them perfect for tough environments. Crafted with precision and a commitment to international standards, these hex bars and rods are ideal for use in marine, pharmaceutical, chemical, and food processing industries. Their unique hexagonal shape not only enhances machinability but also ensures structural integrity in high-stress applications. Dhruv Metals offers a variety of sizes and specifications for their Stainless Steel 316 Hex Bars and Rods, guaranteeing exceptional quality, durability, and performance for critical industrial needs both locally and globally.
Stainless Steel 316 (UNS S31600) is an austenitic stainless steel that contains about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts its corrosion resistance, particularly against chlorides and acidic conditions. It boasts a tensile strength ranging from 515 to 700 MPa, a yield strength of around 205 MPa, and impressive elongation (~40%) and toughness. With a density of 7.98 g/cm³, 316 stainless steel is known for its excellent weldability, formability, and resistance to pitting and crevice corrosion, making it a top choice for aggressive chemical and marine applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 316 Hex Bars and Rods find extensive use in marine settings, such as boat fittings, pump shafts, and fasteners that are regularly exposed to saltwater. In the chemical and pharmaceutical sectors, they are perfect for creating valves, reactors, and processing equipment due to their strong resistance to acids and chlorides. The food and beverage industry also relies on them for hygienic processing machinery. Their strength and corrosion resistance make them suitable for architectural projects, medical devices, and heat exchangers. The hexagonal shape not only enhances their functionality but also makes them easier to work with in various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
