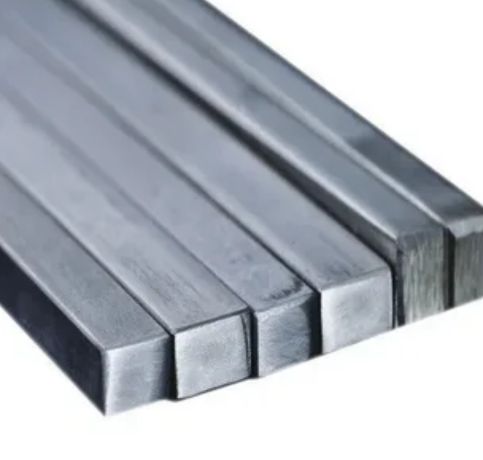

Dhruv Metals, located in Hyderabad, India, has made a name for itself as a leading manufacturer and supplier of Stainless Steel 420 Square Bars and Rods. These products are designed to deliver high strength and wear resistance, making them perfect for tough industrial applications. Stainless Steel 420 is a high-carbon martensitic stainless steel that stands out for its impressive hardness after heat treatment, along with decent corrosion resistance in mild environments. Our SS 420 square bars and rods are meticulously crafted to adhere to strict quality standards, ensuring they’re up to the task for applications that demand durability, toughness, and excellent edge retention. Dhruv Metals caters to a diverse array of industries with reliable stainless steel solutions.
Typically, Stainless Steel 420 Square Bars and Rods are composed of chromium (12.0–14.0%) and carbon (0.15–0.40%) as their main alloying elements, along with controlled amounts of manganese, silicon, phosphorus, and sulfur. This specific composition allows for heat treatment that achieves impressive hardness levels ranging from 50 to 58 HRC. Additionally, it boasts a tensile strength of 700 to 1000 MPa, a yield strength of about 345 MPa, and an elongation of roughly 15%. SS 420 strikes a great balance between mechanical strength, wear resistance, and moderate corrosion protection in less aggressive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 420 | 0.15 | 14.0 | 1.00 | – | 0.04 | 0.03 | 1.00 |
| Element | Tensile Strength | Yield Strength | Elongation | Hardness |
| SS 420 | 95,000 | 50,000 | 25 | 175 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 420 | 1.4021 | S42000 | SUS 420 J1 | 420S29 | – | – | FeMi35Cr20Cu4Mo2 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 420 Square Bars can be customized in size and length to meet specific requirements. Customization is available based on client specifications and industry standards.
Yes, Stainless Steel 420 square rods can be welded, but they may require preheating and post-weld heat treatment to avoid cracking. Proper filler material is also recommended to maintain strength and corrosion resistance.
Yes, we provide stainless steel 420 square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@dhruvmetals.co.in
You’ll find Stainless Steel 420 Square Bars and Rods utilized in various industries, including toolmaking, automotive, defense, and surgical instrument manufacturing. They’re often used to create knife blades, cutlery, pump shafts, valve components, scissors, and industrial tools. Thanks to their outstanding heat-treatable properties, these bars are perfect for applications that require high hardness, edge retention, and wear resistance. SS 420 performs admirably in mild corrosive environments, making it a practical and cost-effective choice for parts that face mechanical stress and friction in dry or moderately corrosive conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
