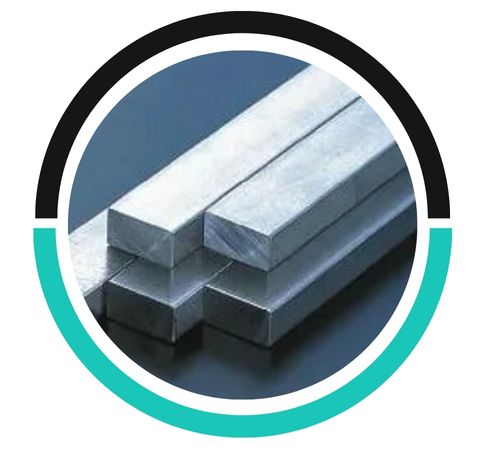

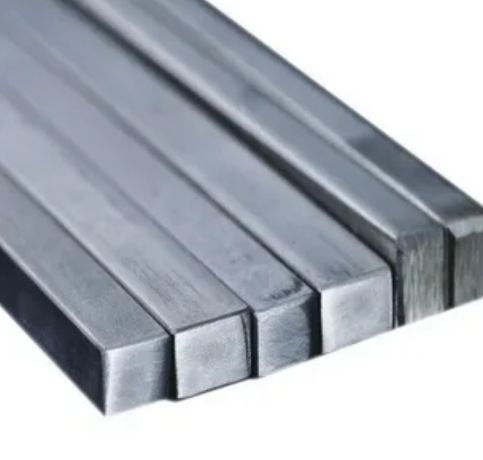

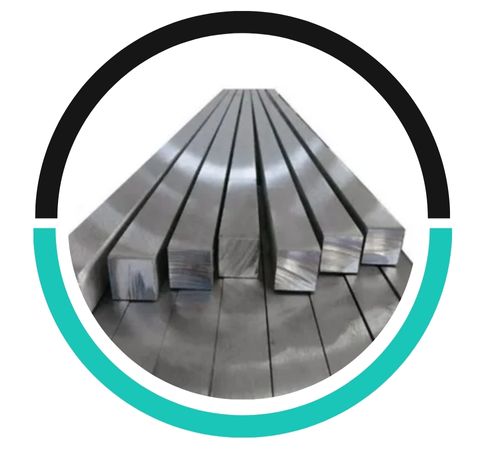

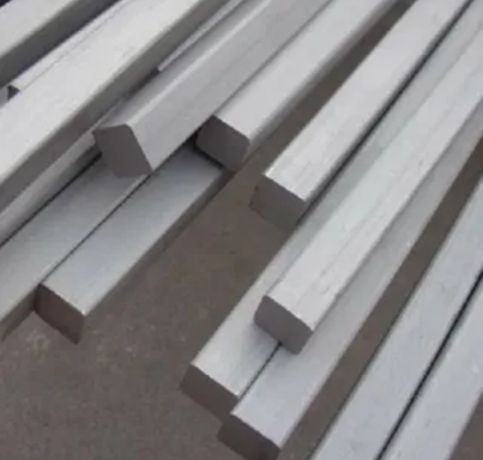

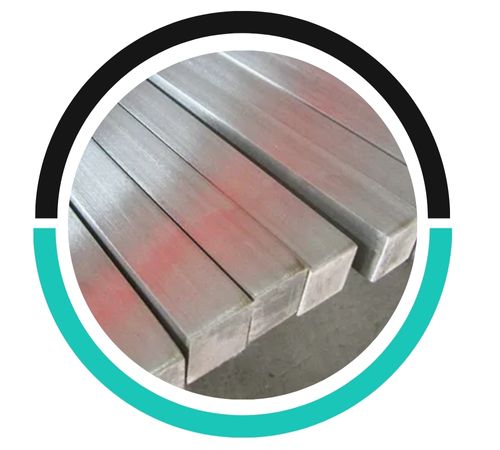

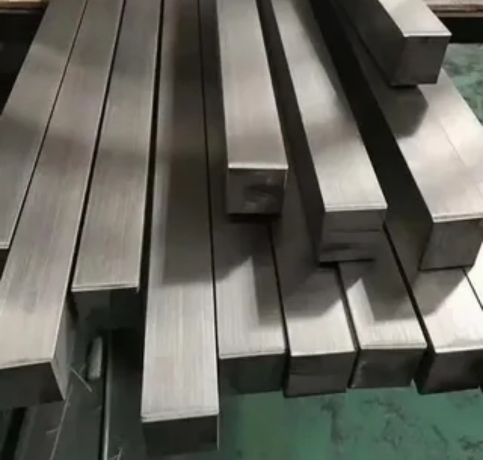

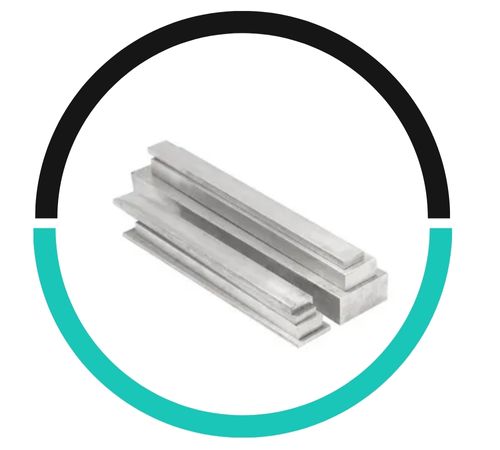

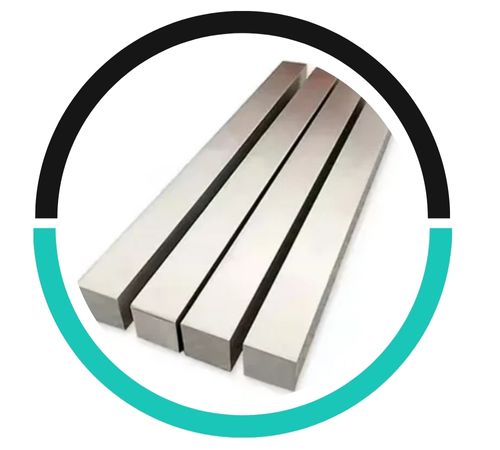

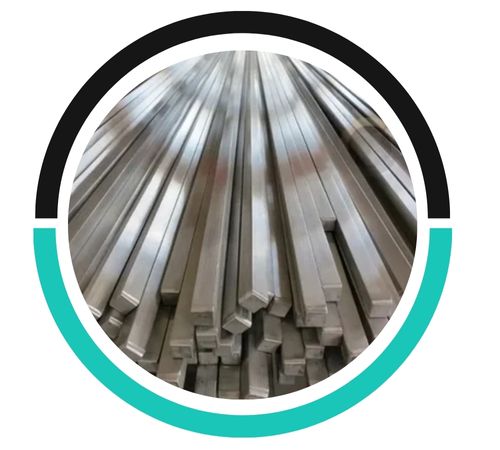

Dhruv Metals, a prominent manufacturer and supplier located in Hyderabad, India, specializes in top-quality Stainless Steel 904L Square Bars and Rods. These products are designed for critical industrial applications that demand exceptional corrosion resistance and durability. Renowned for their high-performance materials, Dhruv Metals ensures that their 904L square bars and rods are crafted with precise dimensions, a flawless surface finish, and robust mechanical properties. Each item is produced in line with international quality standards, making them perfect for extreme environments like chemical processing, marine systems, and offshore industries where resistance to harsh corrosion is a must.
The composition of Stainless Steel 904L Square Bars and Rods includes significant amounts of chromium (19–23%), nickel (23–28%), molybdenum (4–5%), copper (1–2%), and low carbon content. This austenitic stainless steel is known for its outstanding resistance to sulfuric acid, chloride stress corrosion cracking, and pitting. In terms of mechanical properties, it boasts a tensile strength of about 490–710 MPa, a yield strength of around 220 MPa, and an elongation of 35% or more. The square cross-section not only provides structural integrity but also facilitates easy fabrication, making these bars and rods ideal for demanding applications where both strength and corrosion resistance are essential.
| Specifications | : | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Square Bars | : | Outside Diameter in the range of 4mm to 500mm |
| SS 904L Square Bars | : | 18mm ” 47mm (11/16″ to 1-3/4″) |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN | EURONORM NAME |
| SS 904L | 1.4539 | N08904 | – | 904S13 | – | X1NiCrMoCuN25-20-5 |
| SQUARES | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, we provide stainless steel 904L square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@dhruvmetals.co.in
Stainless Steel 904L Square Rods are known for their exceptional corrosion resistance, high strength, and excellent weldability, making them ideal for harsh environments. They also exhibit good formability, durability, and resistance to pitting and crevice corrosion.
Yes, Stainless Steel 904L Square Bars can be recycled after use. Their high nickel and chromium content make them valuable for recycling, reducing waste and conserving resources.
Stainless Steel 904L Square Bars and Rods find extensive use in industries that require exceptional corrosion resistance in tough and aggressive environments. Typical applications include heat exchangers, chemical storage tanks, pulp and paper processing, gas scrubbers, seawater handling systems, and pharmaceutical equipment. Their high resistance to acidic and chloride-rich media makes them particularly suitable for marine settings and offshore oil and gas platforms. Additionally, they are utilized in architectural structures, food processing, and pollution control systems. With their excellent formability and weldability, 904L square bars and rods are a dependable choice for precision engineering and long-lasting performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
