Dhruv Metals, a well-respected manufacturer and supplier located in Hyderabad, India, focuses on crafting high-performance Titanium Grade 5 Forgings. These forgings are celebrated for their impressive strength-to-weight ratio, resistance to corrosion, and long-lasting durability, making them ideal for demanding industries like aerospace, defense, medical, and marine. By utilizing cutting-edge forging technology and maintaining rigorous quality control, Dhruv Metals produces precision-engineered Titanium Gr 5 components that meet specific customer needs. With a strong commitment to international standards, reliability, and innovation, Dhruv Metals has built a solid reputation as a go-to partner for high-strength titanium solutions in global markets.
Titanium Grade 5 (Ti-6Al-4V), known by its UNS designation R56400, is an alpha-beta alloy that consists of 6% aluminum, 4% vanadium, and the rest titanium. It’s recognized for its outstanding mechanical strength and resistance to corrosion. This alloy boasts a tensile strength of around 895 MPa, a yield strength of about 828 MPa, and an elongation of 10–15%. With a density of 4.43 g/cm³, it holds its structural integrity even at high temperatures (up to 400°C). Grade 5 is much stronger than commercially pure titanium while still being easy to weld and machine, making it perfect for high-stress applications.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

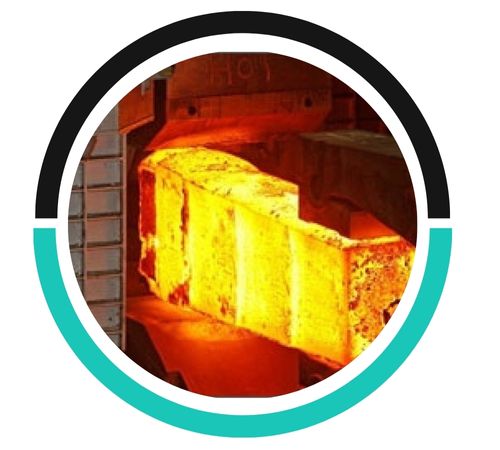

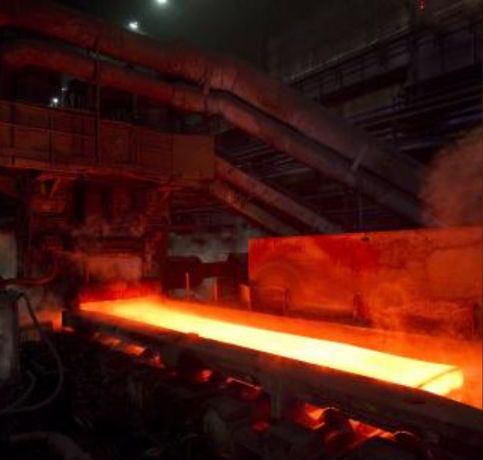

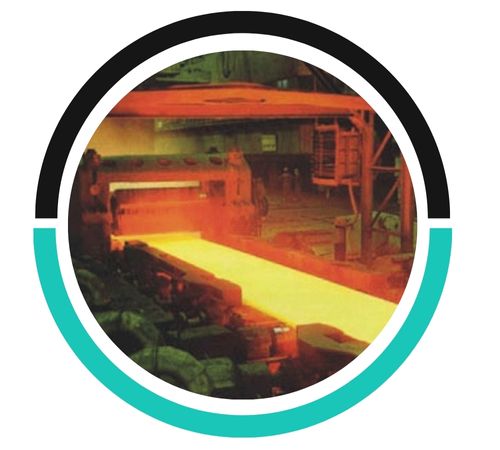

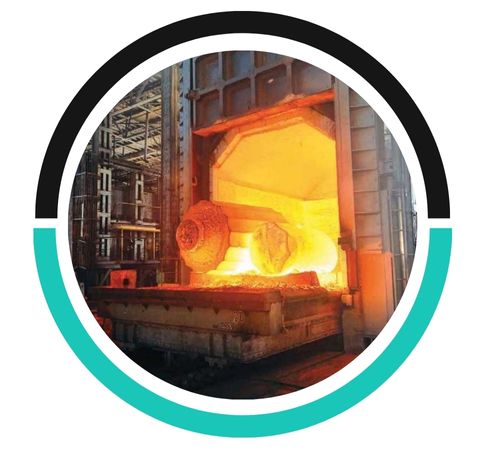

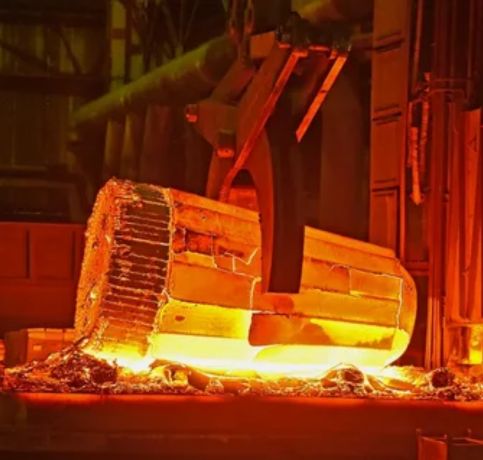

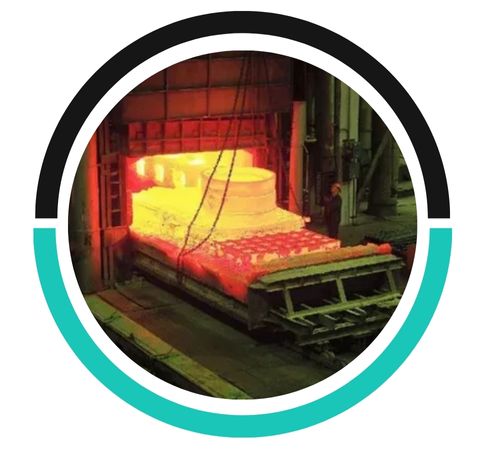

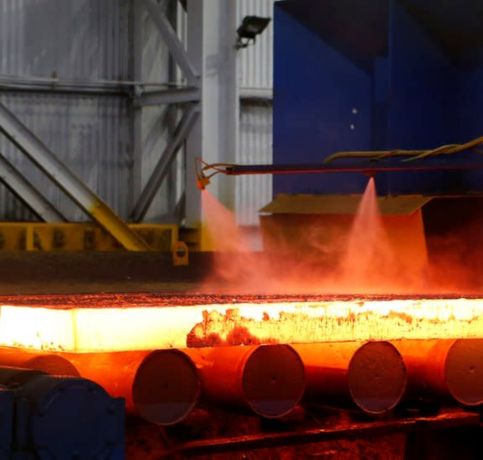

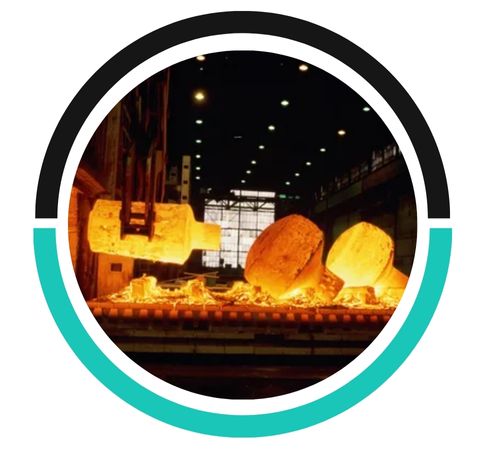

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Titanium Grade 5 Forgings find extensive use in the aerospace industry for structural components, engine parts, and landing gear, thanks to their remarkable strength and lightweight nature. In defense, they play a crucial role in armor plating, missile systems, and military aircraft. The medical field relies on Grade 5 for orthopedic implants, surgical instruments, and dental devices due to its biocompatibility and resistance to fatigue. In marine and offshore applications, these forgings are utilized for shafts, valves, and pump components that are exposed to corrosive seawater.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
