Dhruv Metals, based in Hyderabad, India, has built a solid reputation as a manufacturer and supplier of Titanium Grade 1 Bars and Rods. Their products are crafted with premium quality in mind, ensuring high performance even in the most demanding environments. These bars and rods are celebrated for their remarkable corrosion resistance, excellent formability, and lightweight nature, making them a go-to choice in marine, chemical processing, medical, and aerospace fields. Dhruv Metals offers a variety of Titanium Grade 1 Bars and Rods in different diameters and lengths, all adhering to international standards. With a strong commitment to quality assurance, timely delivery, and customer satisfaction, Dhruv Metals has become a reliable partner for those in need of dependable titanium material solutions.
Titanium Grade 1 is the softest and most ductile among all commercially pure titanium grades. It boasts 99.5% pure titanium, with only trace amounts of elements like oxygen (up to 0.18%), nitrogen (up to 0.03%), carbon, hydrogen, and iron. Its tensile strength ranges from approximately 240 to 410 MPa, while the yield strength falls between 170 and 380 MPa, complemented by excellent elongation and impact resistance. With a density of 4.51 g/cm³, it offers outstanding corrosion resistance, particularly in oxidizing and mildly reducing environments. Grade 1 is also easy to weld, form, and machine, making it perfect for complex applications.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

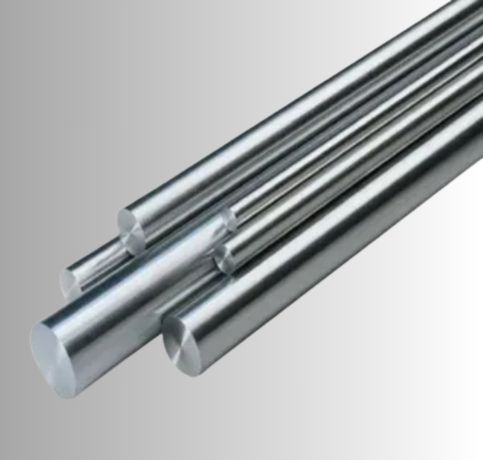

| Round bar size : | Diameter: 3-~800mm |

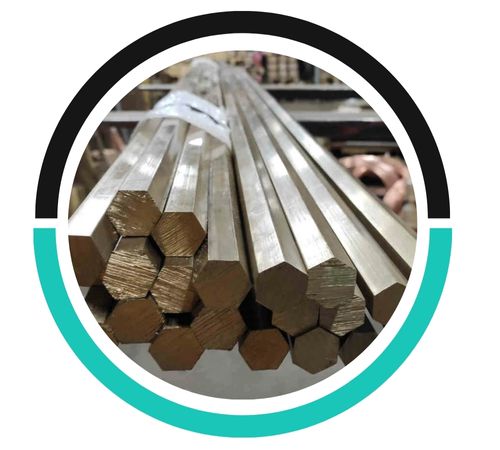

| Hex Bar size : | 2-100mm A/F |

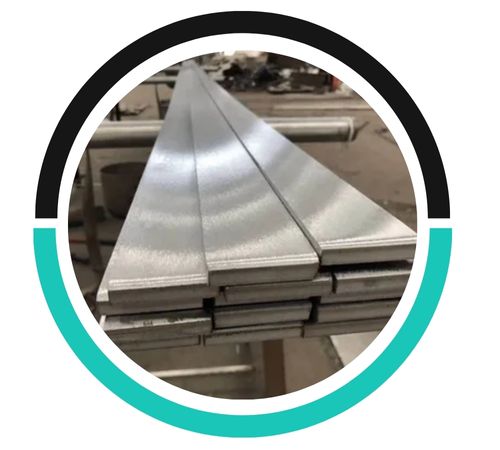

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

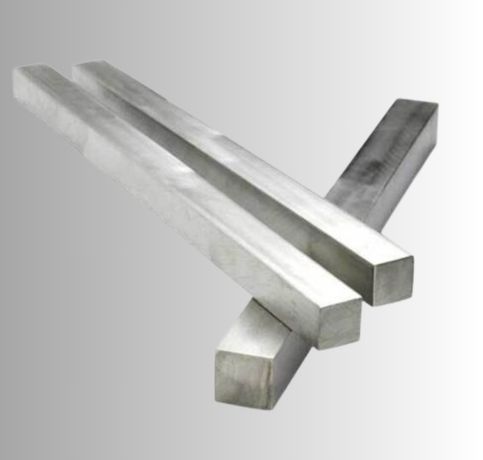

| Square bar size : | 4 to 100mm |

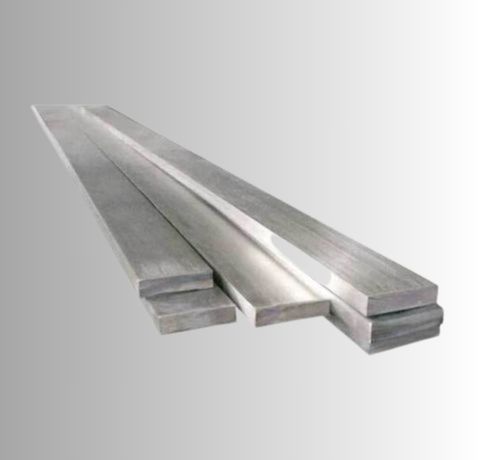

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

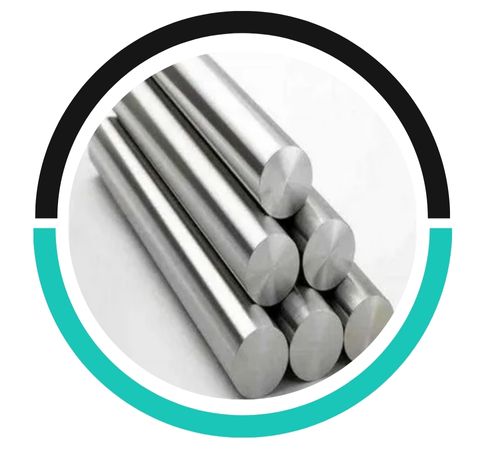

| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 1 Bars and Rods find extensive use in chemical processing equipment, including heat exchangers, reactors, and pressure vessels, thanks to their exceptional corrosion resistance. In the marine sector, they are utilized in desalination plants, ship components, and offshore systems that face saltwater exposure. Their biocompatibility makes them ideal for medical devices, surgical implants, and dental components. In aerospace, they are used for low-load structural components and airframes. Additionally, these bars and rods are employed in electroplating, anodizing, and architectural applications, showcasing their versatility across various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
