Dhruv Metals, located in Hyderabad, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Titanium Grade 11 Bars and Rods. These products are specifically crafted for critical applications where corrosion resistance and formability are key. With a strong commitment to international quality standards and cutting-edge manufacturing techniques, Dhruv Metals offers Titanium Grade 11 Bars and Rods in a variety of sizes and specifications to meet the diverse needs of different industries. Known for their outstanding weldability, mechanical strength, and ability to withstand harsh corrosive environments, including acidic and chloride-rich conditions, Dhruv Metals proudly serves clients in the chemical, marine, power, and defense sectors with high-performance titanium solutions.
Titanium Grade 11 (UNS R52250) is a commercially pure titanium alloy that closely resembles Grade 1, but with a slight addition of 0.12% to 0.25% palladium, which boosts its corrosion resistance, particularly in reducing and mildly oxidizing environments. The alloy consists of about 99.5% titanium, along with small amounts of iron, carbon, nitrogen, hydrogen, and oxygen. It boasts a tensile strength of around 345 MPa, a yield strength of approximately 275 MPa, and excellent ductility and impact toughness. With a density of 4.51 g/cm³, Grade 11 also offers high resistance to crevice and pitting corrosion, making it perfect for demanding service environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

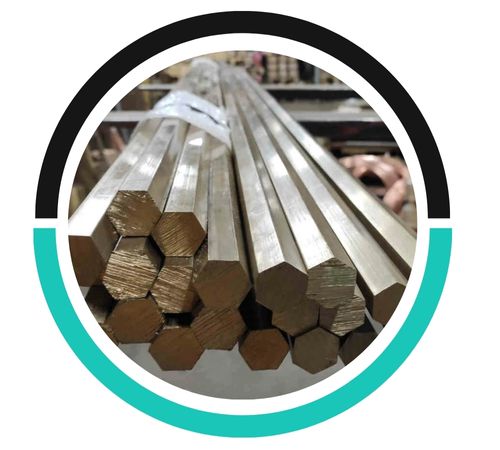

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Titanium Grade 11 Bars and Rods are perfect for use in chemical processing plants, particularly in environments where exposure to chlorides, acids, and brines is frequent. They find extensive application in desalination plants, offshore oil and gas platforms, and marine systems due to their remarkable resistance to saltwater corrosion. In the power generation industry, they are utilized in condenser tubing and cooling systems. Thanks to their excellent weldability and strength, they are also employed in heat exchangers, evaporators, and pressure vessels. Moreover, their biocompatibility and inert nature make them suitable for various medical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Dhruv Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hyderabad , India
