Dhruv Metals stands out as a top manufacturer and supplier of Titanium Grade 3 Bars and Rods, proudly based in Hyderabad, India. They specialize in high-strength titanium products that are built to perform in tough industrial environments. Titanium Grade 3, known for being commercially pure (CP), perfectly balances strength and corrosion resistance, making it a go-to choice for demanding structural and mechanical applications. With excellent weldability and moderate formability, these bars and rods are crafted to meet strict standards like ASTM B348. Dhruv Metals offers both standard and custom-sized Titanium Gr 3 Bars/Rods, ensuring superior dimensional accuracy to satisfy the precise needs of clients around the globe.
Titanium Grade 3 Bars/Rods are made up of about 99.2% titanium, with small amounts of trace elements like iron (max 0.30%), oxygen (max 0.35%), carbon, hydrogen, and nitrogen. This grade boasts greater mechanical strength compared to Grades 1 and 2, featuring a tensile strength of around 585 MPa, yield strength of about 380 MPa, and an elongation of 18%, along with a Brinell hardness of roughly 160 HB. Grade 3 maintains excellent corrosion resistance in oxidizing and mildly reducing environments while providing moderate ductility and exceptional weldability, making it perfect for industrial structural and pressure applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

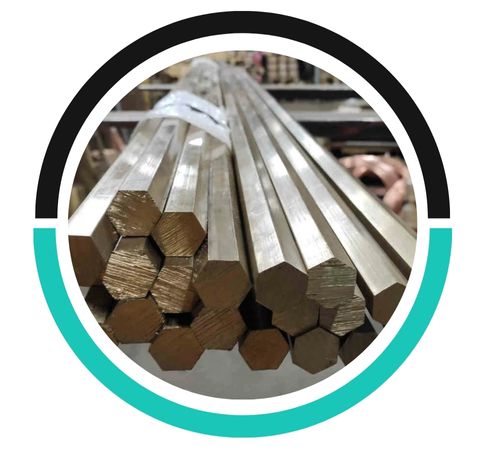

| Hex Bar size : | 2-100mm A/F |

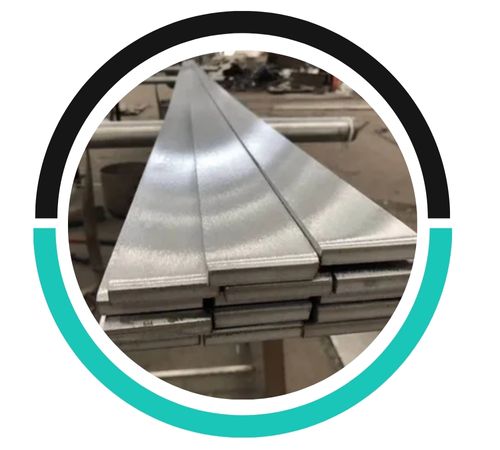

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

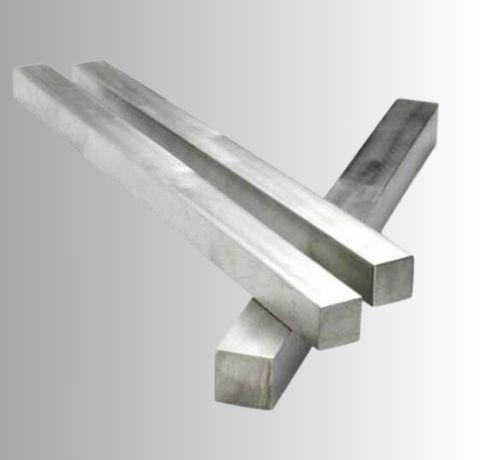

| Square bar size : | 4 to 100mm |

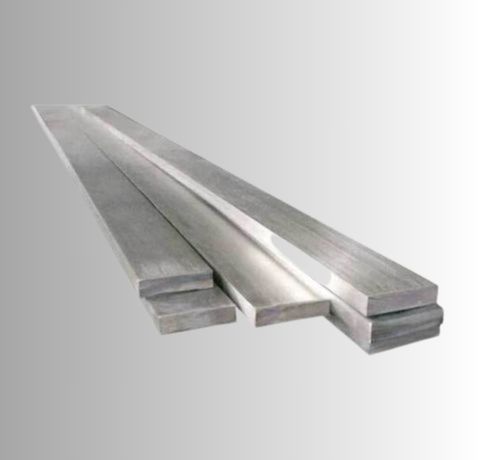

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

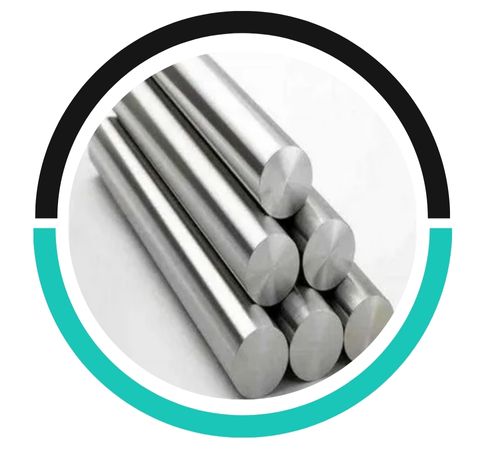

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 3 Bars and Rods find extensive use in industries that demand high strength and corrosion resistance. They are particularly well-suited for offshore oil and gas equipment, aerospace structural frames, marine hardware, and chemical processing vessels. Their impressive tensile properties also make them ideal for hydrometallurgical applications, heat exchangers, and airframe components. In the medical sector, they are utilized in non-implantable equipment and orthopedic instruments. Their outstanding corrosion resistance in seawater, chlorine, and mild acids makes them a great fit for desalination systems and power generation plants. Dhruv Metals supplies these rods to meet diverse industry needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
